mipoxFPD

High polishing performance

Ideal for wet cleaning

When wet polishing with LCD panel polishing tapes, it is possible to polish a panel with very close contact.

Home

About

Contact

085-225-8502

Polishing Film for Glass Edge

From #8000 to mirror polishing is possible, It contributes to the intensity UP of glass.

PRODUCTS :

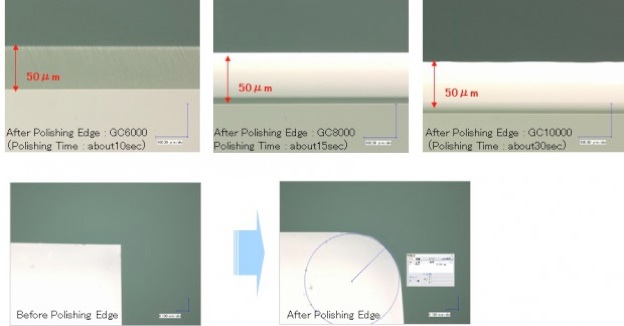

The example of processing polishing films for Glass Edge

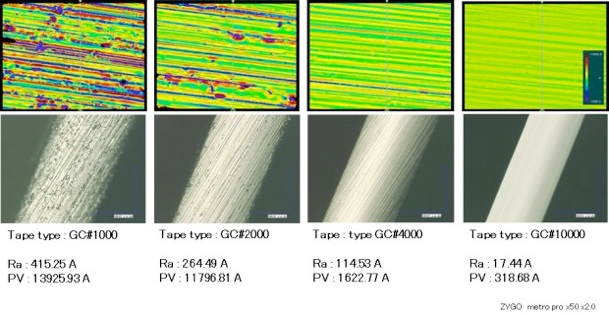

After-processing surface roughness polishing films

TFT Polishing Tapes

WA10000-FB AM0-1

Our polishing tape supports the surface alien substance removal of the liquid crystal display for mobile use - large size TV. It is damageless and can remove a resin-based alien substance and glass cullet. We greatly contribute to improve yield at the time of the polarizing process.

Excellent cleaning performance

Coated abrasives remove glass cullet and any foreign matter strongly stuck on to a panel surface. They are also effective in wiping off oils, fats and fingerprints.

Limits panel damage

Elastic foamed polyurethane is used for the tape base and compared to other methods, a high standard of cleaning is possible with far less damage.

Complete elimination by chip pocket

Foreign substances removed by polishing are collected into the chip pockets; safely retaining them and preventing any scratching on the polished surface.

Suitable for a wide variety of condition

With a broad selection of polishing tapes and mesh sizes from #400 to #10000, whatever your specs, you can be confident we have the right product for the right job. Some of our products is able to remove the adhesive from the deflecting plate.

SWE

Projection Correction Tapes for Color Filter Surfaces

*Competitor(Slitting Edge）

*Mipox（Slitting Edge）

•High polishing rate
Greatly improves working efficiency.
•High effectiveness with high performance polishing tape
Special abrasive allows scratch-free removal of any projection only.
•Low running costs.
Compared with other companies' products, significant cost savings can be made.
•Three product lines for projection correction
With the #8000, #10000 and #15000 lines, you can polish any volume you need

Panel Cleaner

•Initial evaluations are possible with our demonstration machine; we also have performance data for another version of the machine with washing capabilities.

NMF-6 Panel Cleaner

LCD Panel Polishing Slurry

•Cerium slurry for surface precision polishing was developed to remove scratches from a panel surface.

LCD Panel Polishing Slurry

•Compared with traditional polishing slurry, a higher polishing rate has been made possible by mixing in more abrasive. Furthermore, as it is a free abrasive coating, it will not damage the panels and can remove scratches up to approx. 5µm deep.

Excellent washing performance

•The conventional residue problem of liquid abrasives - the amount of abrasive left after polishing - has been greatly improved. The inclusion of additives especially effective for glass polishing, now allows washing and wiping to be carried out in a short time.

Low running costs

•For small size panels, e.g. cell phones, only a few drops of this slurry are enough for polishing; one manufacturer has reworked up to 70% of discarded panels.
