Cosmetic • Medical • Minncare/Actril

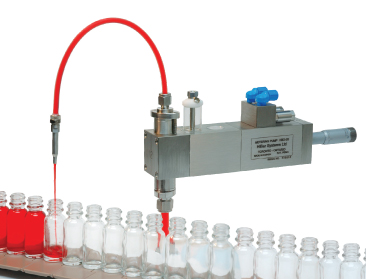

The Hibar B series Check Valve dispensing pumps have proven reliability in servicing the cosmetic, pharmaceutical and technical industries for over 30 years. These pumps are ideally suitable for low to medium viscosity applications that require small dispensing volume of up to 20cc or 0.02ml to 20ml per shot. This pump provides extremely high dispensing accuracies, typically ±1/2% or better. Precise dispense volume adjustment and speed control via the built-in micrometers and precision needle valves. This pump has integrated check valves that can handle fluids with viscosities up to 20,000 cps, containing no solids.

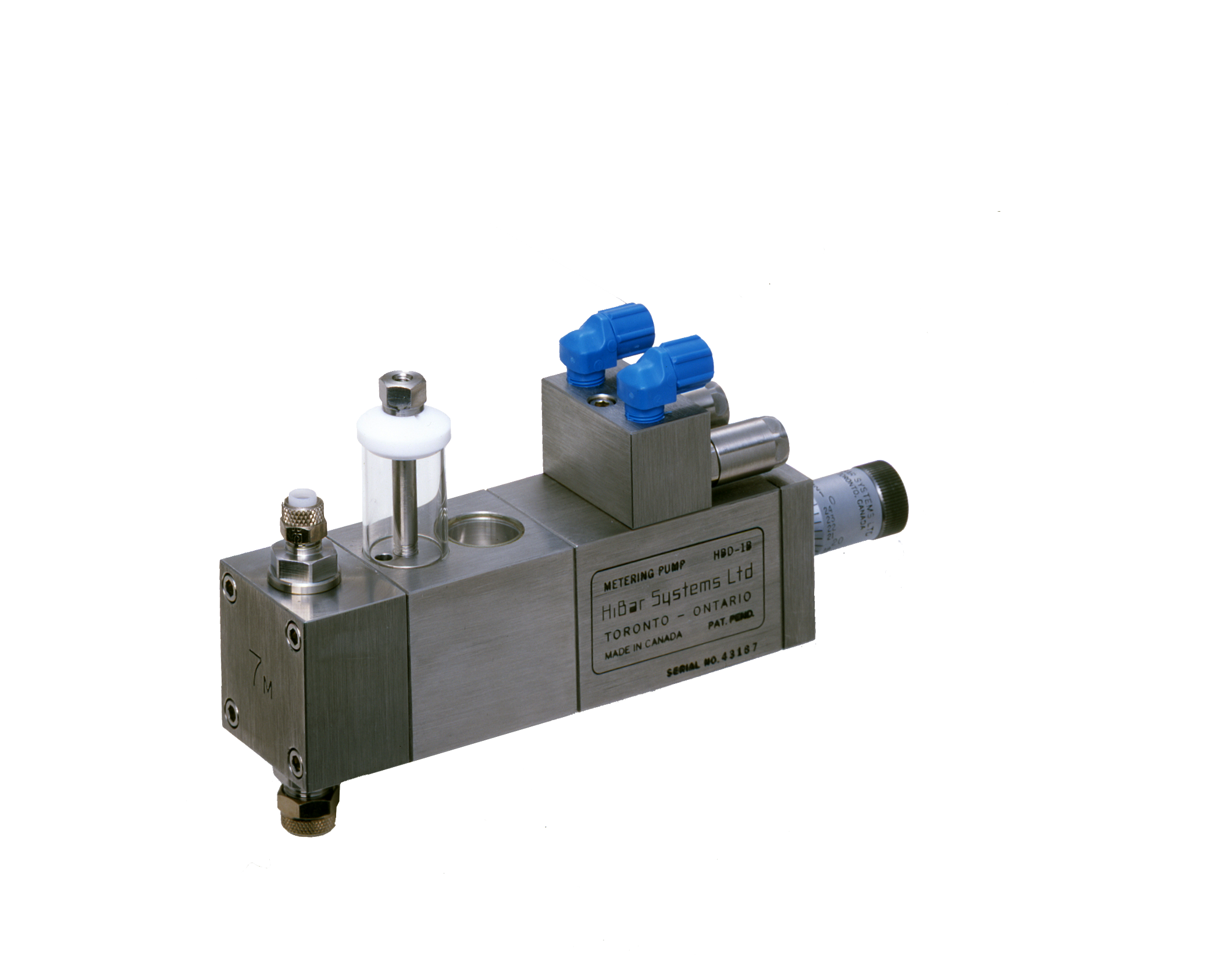

B series Check Valve

Features

1. •316L Stainless Steel construction standard


2. •Easy to disassemble, clean and maintain


3. •Modular design makes it easy to integrate with automated filling equipment


4. •Robust design provides reliable and extended life. Pumps have provided continuous service for over 25 years with only routine maintenance required


5. •Servo motor driven types are also available. Please consult sales department for more information


Application

1. •Filling electrolyte in various kinds of batteries


2. •Filling electrolyte in electrolytic condensers


3. •Dispensing fixed volume of liquid medicine, cough syrup and reagents


4. •Dispensing food such as edible oils, soup, ketchup, sauces, vinegar, honey, cream, juices, puddings


5. •Dispensing fixed volume of cosmetics and toiletries such as lotions, shampoos, oils, cleanser, moisturizer, make-up remover, nail lacquer,  perfumes, mouthwash


6. •Dispensing fixed volume of inks and paints


7. •Filling of aerosol cans


8. •Mounted on food and cosmetic processing equipment

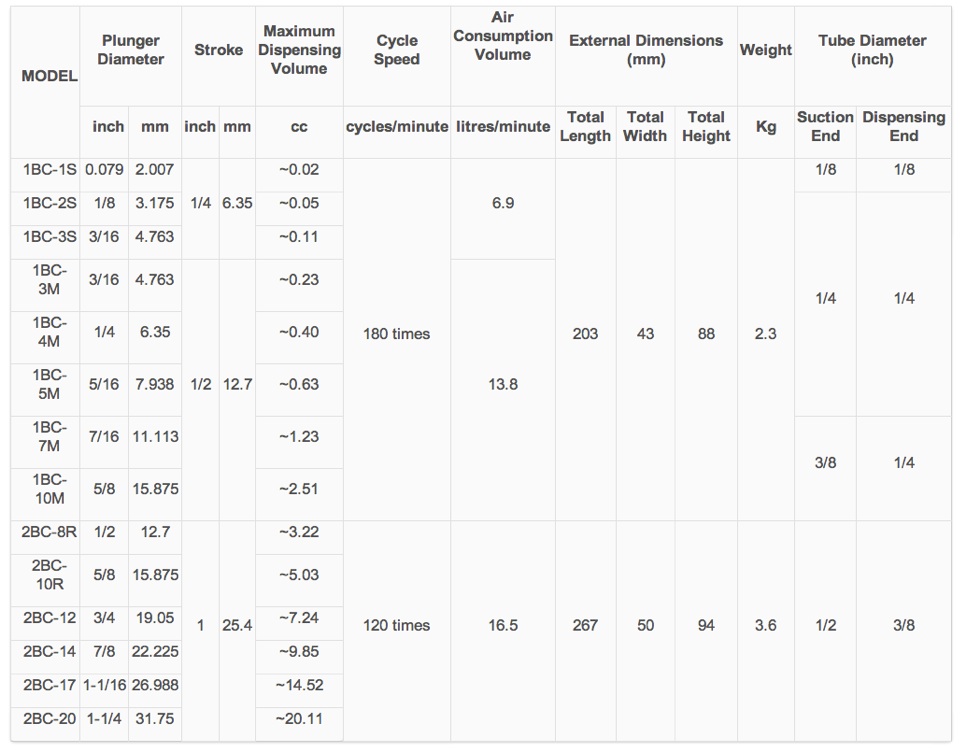

Specifications

Click to Enlarge

Click to Enlarge

•B series Check Valve        •B series Rotary Valve        • F series Check Valve        • F series Rotary Valve        • H series Check Valve        • H series Rotary Valve
